OPNsense

The CrowdSec OPNsense integration connects CrowdSec's hosted blocklist endpoint to your OPNsense firewall. In OPNsense, you'll use URL Table (IPs) aliases to create dynamic firewall aliases that automatically update from external URL sources.

Ensure your OPNsense version supports URL Table (IPs) aliases. If unsure, refer to the OPNsense documentation or contact OPNsense support.

Create an OPNsense Integration Endpoint

1- Create an integration

Step 1 — Create an integration in the CrowdSec Console

In your CrowdSec Console account, navigate to the Blocklist tab in the top menu bar, then select the Integrations sub-menu. Choose the integration type you need, then click Connect.

If you don't have a CrowdSec Console account, sign up here. On mobile, use the menu icon in the top-right corner, tap Blocklist, then Integrations.

2- Remediation Component

Step 2 — Fill in integration details

Name the integration (must be unique to your account) Optionally, add a description and tags to help you identify it later. Then click Create.

3- Save your credentials

Step 3 — Copy your credentials

The credentials shown next are displayed only once. Copy them before closing this screen. If you lose your credentials, you can regenerate them via Configure → Regenerate Credentials on the integration page.

With this HTTPS endpoint and Basic Auth credentials, you can verify the endpoint with any HTTP client, for example:

curl -u 'usr:pass' https://admin.api.crowdsec.net/v1/integrations/$integID/content

4- Subscribe to blocklists

Step 4 — Subscribe to Blocklists

The integration endpoint will serve the deduplicated blocklists it's subscribed to. After creation, a subscription pop-up appears automatically. You can also access it later via the Add Blocklist button.

Select one or more blocklists available for your plan, then click Confirm Subscription. The blocklist name(s) will appear in the integration tile once subscribed.

---

Configure OPNsense

1. Create a URL Table (IPs) alias with your desired update frequency. Embed the credentials in the URL using Basic Auth:

https://<username>:<password>@admin.api.crowdsec.net/v1/integrations/<integration_id>/content

2. Create a firewall rule to block IPs matching the alias.
3. Verify the alias is populated with your subscribed blocklists.

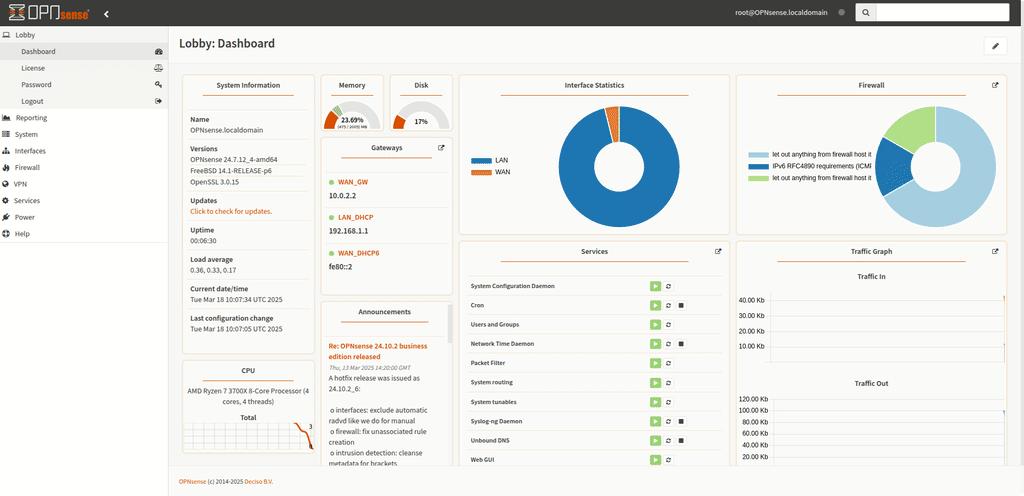

Here is a walkthrough of the full OPNsense configuration:

Manage integration size limits with pagination

If you want to learn how to manage integration size limits with pagination, please refer to the Managing integrations size limits with pagination section.

Next Steps

Subscribe to blocklists in the Blocklist Catalog to populate your integration.
